BIRMINGHAM-SHUTTLESWORTH INTL

BIRMINGHAM, AL, US

Towered Public Use
Downloads:
VFR Card IFR Card Combined Card
Data Source: Cycle Dec 25, 2025 • Version 1.0
FAA LID

BHM

ICAO

KBHM

Coordinates
33.563889, -86.752306
Elevation

650.0 ft

VFR
Pattern Directions
06/24 LEFT
18/36 LEFT
Key Frequencies
ATIS (119.4) 119.4 MHz
GROUND (121.7) 121.7 MHz
UNICOM 122.95 MHz
ATIS (270.1) 270.1 MHz
GROUND (348.6) 348.6 MHz
IFR
Approach Procedures
06: ILS
LOC: 110.3 MHz | GS: 3.0° | Bearing: 58.5°
[1]
18: LOC
LOC: 111.3 MHz | DME: 50X | Bearing: 183.0°
[2]
24: ILS/DME
LOC: 109.5 MHz | GS: 3.0° | DME: 32X | Bearing: 238.5°
[3]
[1] ROEBY COMLO LOCATED ON BACK COURSE.; ILS CLASSIFICATION CODE IIE
[2] LOC UNUSBL BYD 15 DEG RIGHT OF COURSE.; DME UNUSBL BYD 15 NM.
[3] ILS CLASSIFICATION CODE IIE; GLIDESLOPE UNUSBL BYD 5 DEG RIGHT OF CRS.
IFR Frequencies
Approach 119.9 MHz
Departure 125.45 MHz
Services
Fuel: 100LL,A
Landing Fee: No
Storage: HGR, TIE
Key Numbers
TDZE: 603 ft
TCH: 68 ft Unusual
Basic Information
Facility Type A
Site Number 00164.
County JEFFERSON
Chart Name ATLANTA
Distance from City 4 nm NE
Land Area 2,170 acres
Magnetic Variation 3W (2010)
Airport Address
BIRMINGHAM-SHUTTLESWORTH INTL
BIRMINGHAM, AL
Ownership
Owner
BIRMINGHAM AIRPORT AUTHORITY
5900 MESSER AIRPORT HWY
BIRMINGHAM AL 35212
(205) 599-0505
Manager
RONALD MATHIEU
BIRMINGHAM AIRPORT AUTHORITY, 5900 MESSER AIRPORT HWY
BIRMINGHAM AL 35212
(205) 599-0505
Ownership Type PU
Status & Certification
Activation Date 1940/04
ARFF Certification 1973/05
NPIAS Code NGPY
Airspace Analysis NO OBJECTION
Customs Landing Rights
Inspection Method F (Follow-up Inspection)
Inspection Agency F (FAA)
Last Inspection Date 2025-01-10
Runway Length Width Surface Lighting Traffic Pattern Pattern Alt
06/24 12,007 ft 150 ft ASPH HIGH 06: Left, 24: Left Not Published
18/36 7,099 ft 150 ft ASPH MED 18: Left, 36: Left Not Published
VHF
LCL/S 118.25 MHz
ATIS (119.4) 119.4 MHz
APPROACH (VHF) 119.9 MHz
CD/P (120.05) 120.05 MHz
DEPARTURE (120.15) 120.15 MHz
EMERGENCY (121.5) 121.5 MHz
GROUND (121.7) 121.7 MHz
CD/P (121.725) 121.725 MHz
BIRMINGHAM RCO 122.2 MHz
UNICOM 122.95 MHz
CD/P (123.75) 123.75 MHz
DEPARTURE (123.8), DEPARTURE (123.8), DEPARTURE (123.8), DEPARTURE (123.8), CLASS C (123.8) 123.8 MHz
DEPARTURE (124.9) 124.9 MHz
DEPARTURE (125.45), DEPARTURE (125.45), DEPARTURE (125.45), DEPARTURE (125.45) 125.45 MHz
CLEARANCE DELIVERY 125.675 MHz
DEPARTURE (127.675), DEPARTURE (127.675), CLASS C (127.675) 127.675 MHz
DEPARTURE (132.15), DEPARTURE (132.15) 132.15 MHz
BHM VOT 110.0 MHz
UHF [1]
EMERGENCY (243.0) 243.0 MHz
DEPARTURE (256.8), DEPARTURE (256.8), DEPARTURE (256.8), DEPARTURE (256.8), CLASS C (256.8) 256.8 MHz
CD/P (257.7) 257.7 MHz
DEPARTURE (269.25) 269.25 MHz
ATIS (270.1) 270.1 MHz
DEPARTURE (279.65), DEPARTURE (279.65), DEPARTURE (279.65) 279.65 MHz
DEPARTURE (285.45), DEPARTURE (285.45) 285.45 MHz
SFA (294.7) 294.7 MHz
CD/P (305.2) 305.2 MHz
APPROACH (UHF) 317.725 MHz
DEPARTURE (338.2), DEPARTURE (338.2), CLASS C (338.2) 338.2 MHz
GROUND (348.6) 348.6 MHz
DEPARTURE (351.85) 351.85 MHz
DEPARTURE (381.5) 381.5 MHz
SFA (396.0) 396.0 MHz
[1] Military/interoperability frequencies
FAA Services
ARTCC ZTL - ATLANTA
FSS ANB - ANNISTON
FSS Toll-Free 1-800-WX-BRIEF
NOTAM-D Available
Beacon Schedule SS-SR
Beacon Color WG
Wind Indicator Y-L
Facilities
Fuel Types 100LL,A
Airframe Repair MAJOR
Powerplant Repair MAJOR
Bottled Oxygen NONE
Bulk Oxygen HIGH/LOW
Transient Storage HGR, TIE
Other Services AFRT, AMB, AVNCS, CARGO, CHTR, INSTR, RNTL, SALES, SURV

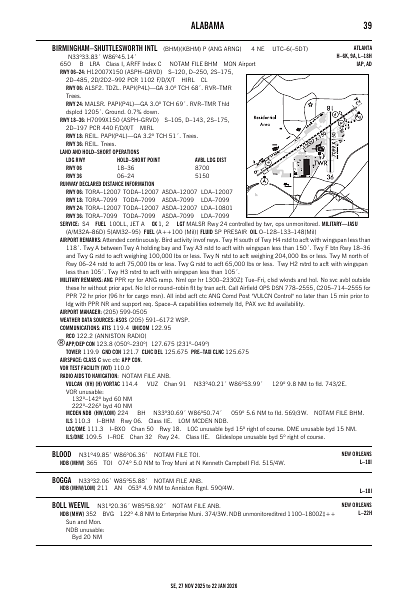

se_39_27NOV2025.pdf
se_39_27NOV2025.pdf
78.4 KB Download
