HUNTSVILLE INTL-CARL T JONES FLD

HUNTSVILLE, AL, US

Towered Public Use
Downloads:
VFR Card IFR Card Combined Card
Data Source: Cycle Dec 25, 2025 • Version 1.0
FAA LID

HSV

ICAO

KHSV

Coordinates
34.637197, -86.775054
Elevation

628.9 ft

VFR
Pattern Directions
18L: LEFT
36R: RIGHT
18R: RIGHT
36L: LEFT
Key Frequencies
ASOS, ATIS 121.25 MHz
GROUND (121.9) 121.9 MHz
UNICOM 122.95 MHz
CTAF 127.6 MHz
GROUND (269.525) 269.525 MHz
IFR
Approach Procedures
18L: ILS
LOC: 111.9 MHz | GS: 3.0° | Bearing: 185.0°
[1]
18R: ILS
LOC: 109.3 MHz | GS: 3.0° | Bearing: 185.0°
[2]
36L: ILS/DME
LOC: 108.5 MHz | GS: 3.0° | DME: 22X | Bearing: 5.0°
[3]
36R: ILS/DME
LOC: 109.55 MHz | GS: 3.0° | DME: 32Y | Bearing: 5.0°
[4]
[1] ILS CLASSIFICATION CODE IE
[2] ILS CLASSIFICATION CODE IIIE.
[3] ILS CLASSIFICATION CODE IE.
[4] LOC UNUSBL BYD 20 DEGS LEFT OF COURSE.; ILS CLASSIFICATION CODE IE.
IFR Frequencies
Approach 127.6 MHz
Departure 125.6 MHz
Services
Fuel: 100LL,A
Landing Fee: No
Storage: HGR, TIE
Key Numbers
TDZE: 589 ft
TCH: 73 ft Unusual
Basic Information
Facility Type A
Site Number 00385.1
County MADISON
Chart Name ATLANTA
Distance from City 9 nm SW
Land Area 6,000 acres
Magnetic Variation 4W (2020)
Airport Address
HUNTSVILLE INTL-CARL T JONES FLD
HUNTSVILLE, AL
Ownership
Owner
HUNTSVILLE MADISON COUNTY
1000 GLENN HEARN BLVD,
HUNTSVILLE AL 35824
256-772-9395
Manager
BUTCH ROBERTS
1000 GLENN HEARN BLVD,, BOX 20008
HUNTSVILLE AL 35824
256-258-1958
Ownership Type PU
Status & Certification
Activation Date 1964/05
ARFF Certification 1973/05
NPIAS Code NGY
Airspace Analysis NO OBJECTION
Customs Landing Rights
Inspection Method F (Follow-up Inspection)
Inspection Agency F (FAA)
Last Inspection Date 2025-07-11
Runway Length Width Surface Lighting Traffic Pattern Pattern Alt
18L/36R 10,001 ft 150 ft ASPH HIGH 18L: Left, 36R: Right Not Published
18R/36L 12,600 ft 150 ft ASPH-CONC HIGH 18R: Right, 36L: Left Not Published
VHF
DEPARTURE (118.05), DEPARTURE (118.05), DEPARTURE (118.05), DEPARTURE (118.05), DEPARTURE (118.05), CLASS C (118.05) 118.05 MHz
APCH/S 118.75 MHz
CD/P 120.35 MHz
ASOS, ATIS 121.25 MHz
EMERGENCY (121.5) 121.5 MHz
GROUND (121.9) 121.9 MHz
HUNTSVILLE RCO 122.2 MHz
UNICOM 122.95 MHz
DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), DEPARTURE (125.6), CLASS C (125.6) 125.6 MHz
APPROACH (VHF), CTAF 127.6 MHz [1]
[1] CTC HSV ARFF ON CTAF OR PHONE 256-461-1115 FOR EMERG WHEN ATCT CLSD.; ACTVT MALSR RWY 18L, 36L & 36R; HIRL RWY 18L/36R & 18R/36L - CTAF. RWY 18R ALSF ON STEP 2 WHEN ATCT CLSD.
UHF [1]
DEPARTURE (239.0), DEPARTURE (239.0), DEPARTURE (239.0), DEPARTURE (239.0), DEPARTURE (239.0), CLASS C (239.0) 239.0 MHz
EMERGENCY (243.0) 243.0 MHz
GROUND (269.525) 269.525 MHz
APPROACH (UHF) 350.35 MHz
DEPARTURE (354.1), DEPARTURE (354.1), DEPARTURE (354.1), DEPARTURE (354.1), DEPARTURE (354.1), CLASS C (354.1) 354.1 MHz
[1] Military/interoperability frequencies
FAA Services
ARTCC ZME - MEMPHIS
FSS ANB - ANNISTON
FSS Toll-Free 1-800-WX-BRIEF
NOTAM-D Available
Beacon Schedule SS-SR
Beacon Color WG
Lighting Schedule ACTVT MALSR RWY 18L, 36L & 36R; HIRL RWY 18L/36R & 18R/36L - CTAF. RWY 18R ALSF ON STEP 2 WHEN ATCT CLSD.
Wind Indicator Y-L
Facilities
Fuel Types 100LL,A
Airframe Repair MAJOR
Powerplant Repair MAJOR
Bottled Oxygen HIGH/LOW
Bulk Oxygen HIGH/LOW
Transient Storage HGR, TIE
Other Services AFRT, AVNCS, CARGO, CHTR, INSTR, RNTL, SURV

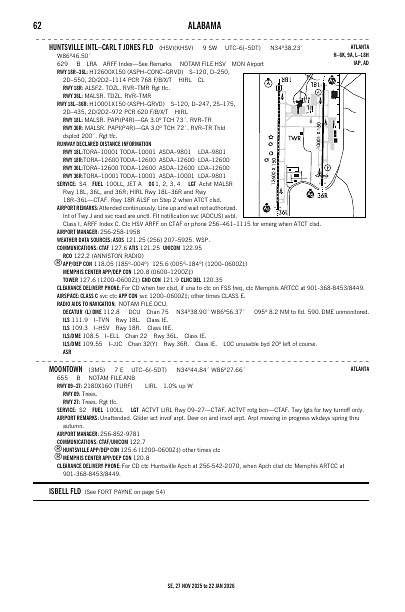

se_62_27NOV2025.pdf
se_62_27NOV2025.pdf
58.7 KB Download
