EGLIN AFB/DESTIN-FT WALTON BEACH

VALPARAISO/DESTIN-FT WALTON BEACH, FL, US

Towered Public Use
Downloads:
VFR Card IFR Card Combined Card
Data Source: Cycle Dec 25, 2025 • Version 1.0
FAA LID

VPS

ICAO

KVPS

Coordinates
30.483219, -86.526044
Elevation

84.0 ft

VFR
Pattern Directions
02/20 LEFT
12/30 LEFT
Key Frequencies
GROUND (121.8) 121.8 MHz
ATIS (134.625) 134.625 MHz
ATIS (273.5) 273.5 MHz
GROUND (335.8) 335.8 MHz
ATIS (379.15) 379.15 MHz
IFR
Approach Procedures
20: ILS/DME
LOC: 109.1 MHz | GS: 2.5° | DME: 28X | Bearing: 195.2°
[1]
30: ILS/DME
LOC: 109.1 MHz | GS: 2.5° | DME: 28X | Bearing: 303.0°
[2]
[1] ILS CLASSIFICATION CODE IA
[2] MILITARY USE: RADAR - SEE TERMINAL FLIP FOR RADAR MINIMA.; ILS CLASSIFICATION CODE IB.
IFR Frequencies
Approach 118.2 MHz
Departure 124.05 MHz
Services
Fuel: A
Landing Fee: No
Key Numbers
TDZE: 48 ft
TCH: 52 ft Unusual
Basic Information
Facility Type A
Site Number 03534.
County OKALOOSA
Chart Name NEW ORLEANS
Distance from City 1 nm SW
Land Area 6,500 acres
Magnetic Variation 3W (2020)
Airport Address
EGLIN AFB/DESTIN-FT WALTON BEACH
VALPARAISO/DESTIN-FT WALTON BEACH, FL
Ownership
Owner
USAF
DEPT OF THE AF HDQRTS AFMC
EGLIN AFB FL 32542
850-882-5313
Manager
TRACY STAGE
1701 STATE ROAD 85N
EGLIN AFB FL 32542
850-651-7160
Ownership Type MA
Status & Certification
Activation Date 1941/03
ARFF Certification 1973/05
NPIAS Code NGY
Military/Civil Joint Use
Inspection Agency F (FAA)
Last Inspection Date 2025-03-26
Last Info Completed Date 2016-04-26
Runway Length Width Surface Lighting Traffic Pattern Pattern Alt
02/20 10,012 ft 300 ft ASPH HIGH 02: Left, 20: Left Not Published
12/30 12,004 ft 300 ft ASPH-CONC HIGH 12: Left, 30: Left Not Published
VHF
APPROACH (VHF) 118.2 MHz
EMERGENCY (121.5) 121.5 MHz
GROUND (121.8) 121.8 MHz
LCL/S 122.8 MHz
DEPARTURE (124.05), DEPARTURE (124.05), DEPARTURE (124.05) 124.05 MHz
DEPARTURE (125.1), APCH/P (125.1) 125.1 MHz
CD/P (127.7), CD/P (127.7) 127.7 MHz
DEPARTURE (132.1), DEPARTURE (132.1), DEPARTURE (132.1), DEPARTURE (132.1), APCH/P (132.1) 132.1 MHz
ATIS (134.625) 134.625 MHz
UHF [1]
EMERGENCY (243.0) 243.0 MHz
ATIS (273.5) 273.5 MHz
DEPARTURE (281.45), APCH/P (281.45) 281.45 MHz
DEPARTURE (284.65), DEPARTURE (284.65) 284.65 MHz
DEPARTURE (290.5) 290.5 MHz
PAR (315.9) 315.9 MHz
COMD POST (318.05) 318.05 MHz
COMD POST (328.025) 328.025 MHz
GROUND (335.8) 335.8 MHz
PAR (341.9) 341.9 MHz
PMSV METRO 342.2 MHz [2]
APPROACH (UHF) 353.65 MHz [3]
DEPARTURE (360.6), DEPARTURE (360.6), DEPARTURE (360.6), APCH/P (360.6) 360.6 MHz
DEPARTURE (UHF) 372.2 MHz
COMD POST (372.8) 372.8 MHz
CD/P (377.2), CD/P (377.2) 377.2 MHz
PAR (378.8) 378.8 MHz
ATIS (379.15) 379.15 MHz [4]
PAR (389.1) 389.1 MHz
COMD POST (390.9) 390.9 MHz
[1] Military/interoperability frequencies
[2] AVBL DUR WX OPR HR, SUN 0500Z TO FRI 0500Z++, CLSD WKEND AND HOL, OT SVC NOT AVBL.
[3] UHF EQPT ACFT MUST USE UHF IN EGLIN TFC PAT.
[4] 379.15 MILITARY USE OPR 1200-0400Z++
FAA Services
ARTCC ZJX - JACKSONVILLE
FSS GNV - GAINESVILLE
FSS Toll-Free 1-800-WX-BRIEF
NOTAM-D Available
Beacon Schedule SS-SR
Beacon Color WG
Lighting Schedule SS-SR
Wind Indicator Y
Facilities
Fuel Types A
Airframe Repair NONE
Powerplant Repair NONE
Bottled Oxygen NONE
Bulk Oxygen NONE

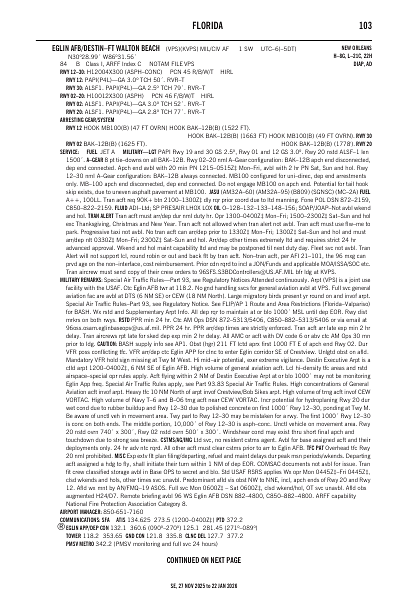

se_103_27NOV2025.pdf
se_103_27NOV2025.pdf
82.5 KB Download
