JOHN WAYNE/ORANGE COUNTY

SANTA ANA, CA, US

Towered Public Use
Downloads:
VFR Card IFR Card Combined Card
Data Source: Cycle Dec 25, 2025 • Version 1.0
FAA LID

SNA

ICAO

KSNA

Coordinates
33.675662, -117.868233
Elevation

55.9 ft

VFR
Pattern Directions
02L: LEFT
20R: RIGHT
02R: RIGHT
20L: LEFT
20X LEFT
Key Frequencies
GROUND (120.8) 120.8 MHz
UNICOM 122.95 MHz
D-ATIS (VHF) 126.0 MHz
CTAF 126.8 MHz
GROUND (132.25) 132.25 MHz
IFR
Approach Procedures
20R: ILS/DME
LOC: 111.75 MHz | GS: 3.0° | DME: 54Y | Bearing: 195.9°
[1]
20X: DME/DME
LOC: 108.3 MHz | DME: 20X | Bearing: 182.9°
[2]
[1] ILS UNMONITORED WHEN ATCT CLOSED.; ILS CLASSIFICATION CODE IE.; LOC BACK CRS UNUSBL BYD 30 DEGS LEFT & 25 DEGS RIGHT OF CRS.; LOC UNUSBL BYD 30 DEGS LEFT OF CRS.; LMM MAAGG NDB UNMONITORED INDEFLY.
[2] LDA UNMON WHEN ATCT CLSD.; RY 20X CREATED TO SUPPORT OJW LDA ASSOCIATED WITH SNA ILS RY 20R.
IFR Frequencies
Approach 119.9 MHz
Services
Fuel: 100LL,A
Landing Fee: No
Storage: TIE
Key Numbers
TDZE: 40 ft
TCH: 75 ft Unusual
Basic Information
Facility Type A
Site Number 02230.
County ORANGE
Chart Name LOS ANGELES
Distance from City 4 nm S
Land Area 504 acres
Magnetic Variation 12E (2015)
Airport Address
JOHN WAYNE/ORANGE COUNTY
SANTA ANA, CA
Ownership
Owner
ORANGE COUNTY
3160 AIRWAY AVENUE
COSTA MESA CA 92626
949-252-5171
Manager
CHARLENE V. REYNOLDS
3160 AIRWAY AVE
COSTA MESA CA 92626
949-252-5171
Ownership Type PU
Status & Certification
Activation Date 1941/11
ARFF Certification 1973/05
NPIAS Code NGPY3
Airspace Analysis NO OBJECTION
Inspection Method F (Follow-up Inspection)
Inspection Agency F (FAA)
Last Inspection Date 2024-05-15
Runway Length Width Surface Lighting Traffic Pattern Pattern Alt
02L/20R 5,700 ft 150 ft ASPH HIGH 02L: Left, 20R: Right Not Published
02R/20L 2,886 ft 75 ft ASPH MED 02R: Right, 20L: Left Not Published
20X — — — — 20X: Left Not Published
VHF
CD/P 118.0 MHz
APPROACH (Rwy 02R-20L) 119.9 MHz
GROUND (120.8) 120.8 MHz
CD/S 121.85 MHz
SANTA ANA RCO 122.4 MHz [1]
UNICOM 122.95 MHz
D-ATIS (VHF) 126.0 MHz
CTAF, LCL/P IC 126.8 MHz [2]
LCL/S 128.35 MHz
GROUND (132.25) 132.25 MHz [3]
SNA VOT 110.0 MHz
[1] COMMUNICATIONS PRVDD BY RIVERSIDE RADIO ON FREQ 122.4 (SANTA ANA RCO).
[2] WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
[3] DO NOT PUBLISH ON APCH PLATES.
UHF [1]
APPROACH (UHF) 343.625 MHz
[1] Military/interoperability frequencies
FAA Services
ARTCC ZLA - LOS ANGELES
FSS RAL - RIVERSIDE
FSS Toll-Free 1-800-WX-BRIEF
NOTAM-D Available
Beacon Schedule SS-SR
Beacon Color WG
Lighting Schedule WHEN ATCT CLSD ACTVT MALSR RY 20R & PAPI RYS 02L & 20R - CTAF.
Wind Indicator Y-L
Facilities
Fuel Types 100LL,A
Airframe Repair MAJOR
Powerplant Repair MAJOR
Bottled Oxygen HIGH/LOW
Transient Storage TIE
Other Services AFRT, AMB, AVNCS, CHTR, INSTR, RNTL, SALES, SURV

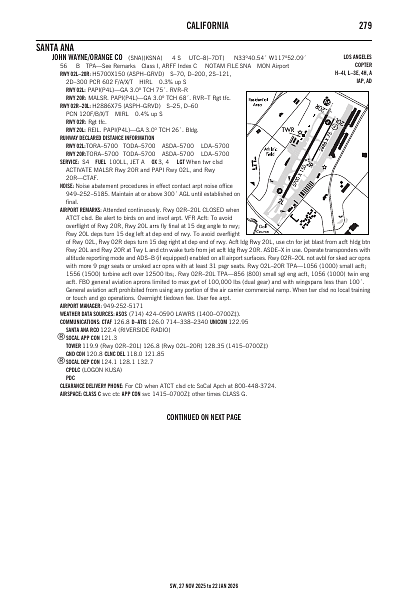

sw_279_27NOV2025.pdf
sw_279_27NOV2025.pdf
90.9 KB Download
